RACLAN Product Line

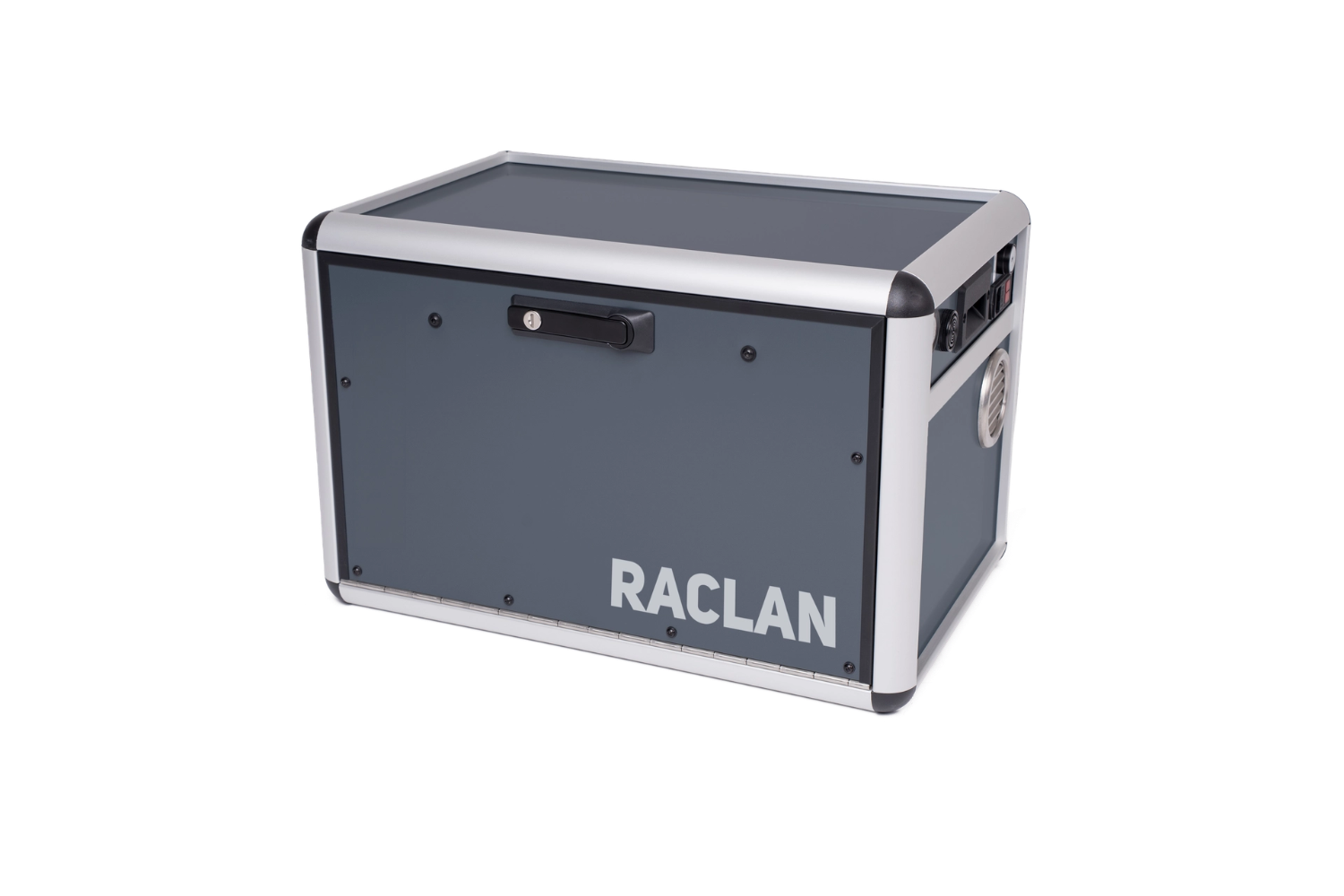

RACLAN Box
Portable lithium fire safety box for charging and storage of smaller battery packs. DMT TÜV Nord certified.
Product Overview
The RACLAN Box is a portable, stackable lithium battery charging and storage box engineered for safe everyday indoor use with smaller battery packs. Distributed by Mercer Yachting and Ritz Marine, exclusive RACLAN dealers for Malta, Sicily and Greece. Buy at Ritz Marine.
- Designed for charging and storage of batteries for e-bikes, e-scooters, power tools, drones, and damaged battery quarantine
- Non-flammable, impact-resistant composite housing with aluminium frame and reinforced front
- Integrated toxin-filtering exhaust; the datasheet requires use in well-ventilated rooms only
- Several chargers can be connected and charged simultaneously inside the box
- Stackable design for efficient storage aboard vessels and in workshops
- Easy handling, lightweight, and transport-friendly at 24.7 kg
Full Specifications
| External Dimensions | 580 × 380 × 380 mm |
| Weight | 24.7 kg |
| Battery Capacity (total) | Up to 1.75 kWh |
| Max Single Battery | 877 Wh |
| TRIDENT® Tank | 5.5 litres |
| Material | Non-flammable, impact-resistant composite housing with aluminium frame and reinforced front |
| Stackable | Yes |
| Internal Charging | Yes, multiple charger connections |
| Emergency Power | Rechargeable internal LiFePO4 backup battery (runtime per manufacturer datasheet) |
| Alarms | 80 dB acoustic + visual |
| Exhaust | Integrated with toxin filtration (hydrogen fluoride, HF) |
| Ambient Temperature Range | −5°C to +45°C |
| Thermal Switch | Not stated for the RACLAN Box in the bundled datasheet or test report |
| Use Environment | Indoor use only |
| Transport | The bundled transport declaration covers the box as shipped with its own 51.2 Wh internal battery. It does not establish compliant carriage of customer batteries inside it. |
Use Cases
The RACLAN Box is designed for indoor use only, ideal for workshops, vessel interiors, offices, garages, and other enclosed spaces wherever lithium batteries need safe charging and storage. For outdoor or marine deck applications, see the RACLAN Square Marine Box.
E-Bikes & E-Scooters
Safe charging for last-mile crew transport batteries and guest bikes aboard yachts or at marinas.
Drone Batteries
Secure storage and charging for survey, photography, and inspection drone battery packs.
Power Tools
Cordless drills, saws, and marine maintenance tools charged safely inside an enclosed, monitored environment.
Camping & Caravan
Guest excursion equipment batteries stored and charged safely during shore-side adventures.
Damaged Battery Quarantine
Isolate and contain suspect or physically damaged batteries safely until disposal or inspection can be arranged.
Commercial Transport
The box is shipped under UN3481 for its own internal 51.2 Wh battery. Our documents do not establish compliant carriage of customer batteries inside it - check ADR and carrier requirements for what you intend to transport.
Workshops & Businesses
For use in workshops, offices and commercial premises, in well-ventilated rooms with the door fully closed and locked, per the datasheet. Separately, if you are charging aboard a yacht: MGN 681 Amendment 1 Section 4.12 addresses charging outside the garaging space and says the cabinet should be suitably secured and supervised at all times. That guidance is for yachts, not workshops.
How the Safety System Works
The RACLAN Box uses a five-stage automated response to detect, contain, and suppress lithium battery thermal runaway events.
Monitor
Electronic sensors continuously monitor battery temperature and charge status throughout every cycle.
Detect
The bundled RACLAN Box datasheet and TUV report 8120433469-10rev2 do not state a trigger threshold for this box, and in that test the extinguishing sequence was triggered manually rather than automatically. We are asking the manufacturer to confirm the automatic trigger behaviour and will publish it here.
Alarm & Isolate
80 dB acoustic and visual alarms activate. Charging power is automatically cut to prevent further energy input.
Suppress
The integrated TRIDENT® extinguishing agent floods the interior to cool the cells and help limit fire propagation.
Filter & Vent
Toxic gases (hydrogen fluoride, HF) are filtered through the exhaust system. External surface temperature stayed below 100°C in TUV test 8120433469-10rev2 (tested specimen, 877 Wh maximum single battery capacity).
Certification & Compliance
The RACLAN Box meets the DMT TÜV Nord test standards for lithium battery containment.
- DMT TÜV Nord CERT: Tested and certified under test program M02/22
- TRIDENT® extinguishing agent: Independently tested by the Fraunhofer Institute
- MGN 681 (M) Amendment 1: Aligned with MCA guidance for fire safety and storage of electric-powered craft batteries on yachts
- Current ADR & UK road safety: The bundled transport declaration covers the box as shipped with its own internal 51.2 Wh battery. It does not establish transport compliance for customer batteries carried inside the box.
- IMDG Code: Not established by our documents for customer batteries carried inside the box. Declare battery contents and check carrier requirements before shipping.
Technical Documents
Download manufacturer datasheets, test certificates, internal dimensions, and the user manual for the RACLAN Box.
Request a RACLAN Box Quote
Our lithium safety specialists will help you specify the right RACLAN Box configuration for your vessel or business. We handle sourcing, freight, and quayside delivery worldwide.
Request a QuoteRelated Products
Frequently Asked Questions
What is the RACLAN Box?
The RACLAN Box is a portable, stackable lithium fire safety box designed for charging and storage of smaller lithium battery packs. It features electronic monitoring, automatic TRIDENT® fire suppression, acoustic and visual alarms, and an integrated exhaust system with toxin filtration. Certified by DMT TÜV Nord under test program M02/22.
What batteries fit inside the RACLAN Box?
The RACLAN Box accommodates lithium-ion batteries within the datasheet limits - single battery up to 877 Wh, total box capacity 1.75 kWh. Common applications include e-bike batteries, e-scooter batteries, drone batteries, cordless power tool batteries, and small personal electronics batteries. It is also suitable for quarantining damaged or suspect batteries.
Is the RACLAN Box for indoor or outdoor use?
The RACLAN Box is designed for indoor use only. Its integrated exhaust system with toxin filtration (hydrogen fluoride, HF) filters the gases vented during a thermal runaway event. TUV test report 8120433469-10rev2 recorded brief smoke emission from the flap edge gap during venting, so the box reduces rather than eliminates emission into the surrounding space. It is suitable for workshops, vessel interiors, offices, and garages. For outdoor or marine deck applications, see the RACLAN Square Marine Box.
Is the RACLAN Box approved for road transport?
Our bundled documents do not establish that. It is also shipped with its own internal 51.2 Wh battery declared under UN3481; the bundled transport declaration covers the product as shipped, not customer batteries carried inside it. Always declare battery contents to your transport provider and provide supporting certification documentation.
Can I charge multiple batteries at once?
Yes. The RACLAN Box supports multiple charger connections, allowing several batteries to be charged simultaneously inside the safety enclosure while under active electronic monitoring. Ensure total battery capacity does not exceed 1.75 kWh. Ensure total battery capacity does not exceed 1.75 kWh.
What happens if thermal runaway occurs inside the RACLAN Box?
If thermal runaway is detected, the RACLAN Box automatically activates acoustic and visual alarms, cuts charging power, and deploys the TRIDENT® extinguishing agent to flood the interior and suppress the fire. The integrated exhaust system filters toxic gases (hydrogen fluoride, HF) before venting. In TUV test 8120433469-10rev2 (tested specimen, 877 Wh maximum single battery capacity) the recorded external surface temperature stayed below 100°C; that is a test result, not a guaranteed outcome for every battery or event. The box should not be re-used until inspected and refilled by a qualified technician.
Regulatory Sources
- MGN 681 (M) Amendment 1: Fire safety and storage of small electric powered craft on yachts (MCA, 19 December 2025)
- ZARGES BatterySafe: Product specifications (ZARGES USA)
- IMDG Code Amendment 42-24 (West P&I Club)
