Watertight active charging and storage solution for yacht water toy batteries. DMT TÜV Nord certified.

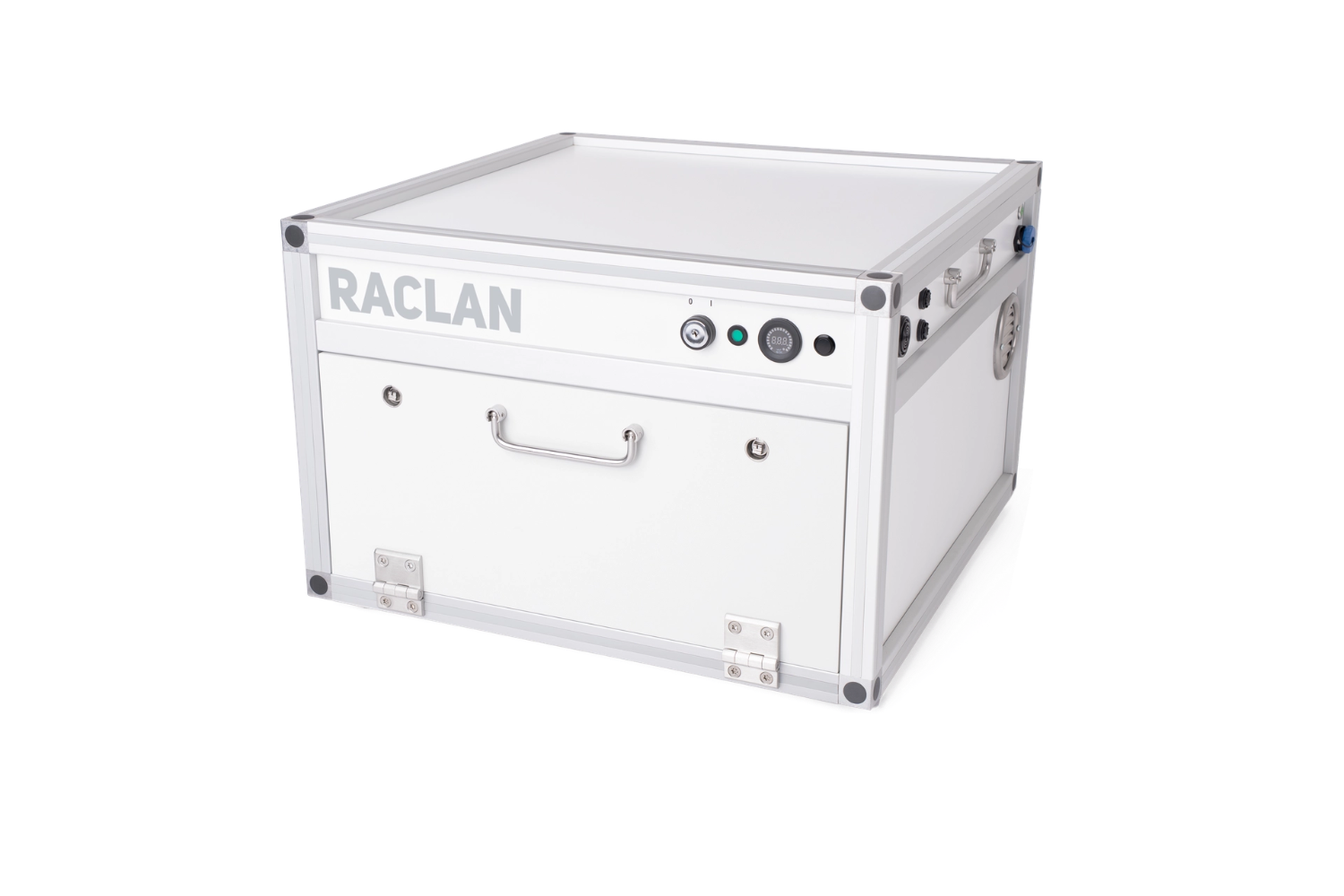

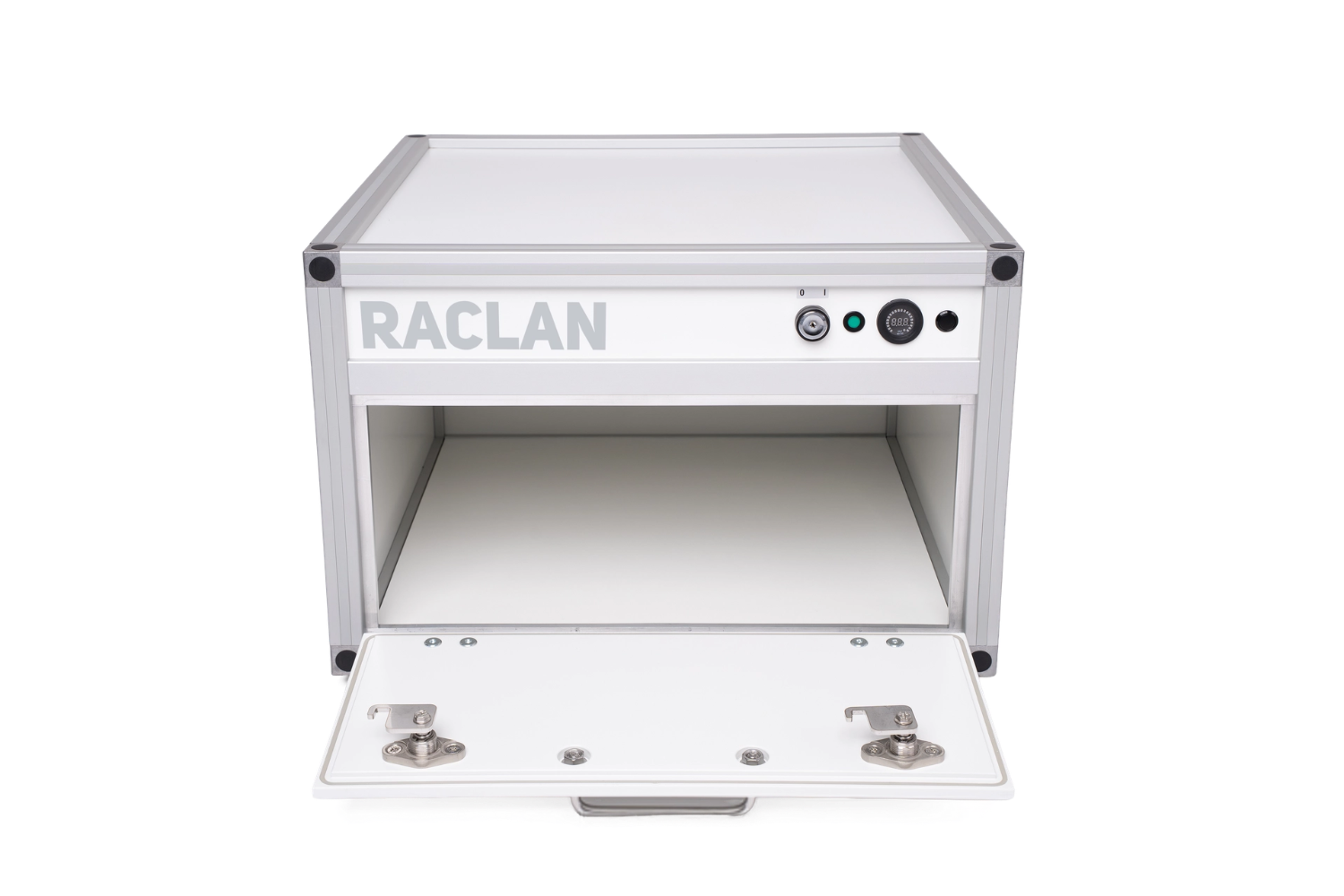

The RACLAN Square Marine Box is an active lithium fire safety box engineered for permanent installation aboard yachts and day boats. It provides monitored charging and safe storage for removable water toy batteries in a fully watertight enclosure. Distributed by Mercer Yachting and Ritz Marine, exclusive RACLAN dealers for Malta, Sicily and Greece. Buy at Ritz Marine.
The RACLAN Square Marine Box provides continuous protection throughout the entire charging cycle. If a thermal event occurs, the system responds automatically; no crew intervention required.
Test result: External surface temperature did not exceed 100°C during thermal runaway testing, protecting crew and surrounding materials from ignition.
The RACLAN Square Marine Box accommodates removable batteries from all major water toy manufacturers. The datasheet states a maximum single battery capacity of 3.5 kWh and a maximum TOTAL battery capacity of 3.5 kWh, lithium-ion only, and use with the door fully locked. Check the internal dimensions against your pack before ordering.
The RACLAN Square Marine Box is independently tested and certified, with alignment to current maritime safety guidance for lithium battery storage and charging.
Download manufacturer datasheets, test certificates, internal dimensions, and user manuals for the RACLAN Square Marine Box.
Tell us about your vessel and water toy fleet. We will specify the right RACLAN Square configuration, coordinate delivery to any port worldwide, and provide supporting compliance documentation.
Lloyd's Register Approved
Modular safety box system for superyachts. Lloyd's Register certificate LR26434348SF states a maximum permitted total stored battery energy of 5.2 kWh. Stack and link modules to fit any toy store layout.
View RAMBSS Modules specificationsDMT TÜV Nord Certified
Portable, stackable charging and storage box for smaller battery packs up to 1.75 kWh. Ideal for e-bikes, drones, and power tools.
View RACLAN Box specificationsRACLAN & ZARGES
Browse the full range of lithium fire safety boxes and battery storage solutions for superyachts and commercial vessels.
View all lithium safety productsThe RACLAN Square Marine Box is a watertight active charging and storage solution for lithium batteries aboard yachts and day boats. It features electronic monitoring, automatic TRIDENT® fire suppression, toxic gas filtration, and is DMT TÜV Nord certified. It accommodates batteries up to 3.5 kWh from all major water toy manufacturers.
The RACLAN Square fits removable lithium-ion batteries within the datasheet limits (maximum single battery 3.5 kWh AND maximum total 3.5 kWh across everything inside, subject to internal fit), including batteries from Fliteboard, Lift eFoils, Awake boards, Audi e-tron Aerofoils, Radinn, Lampuga, drones, and all other removable water toy batteries within the capacity limit.
Yes, the RACLAN Square Marine Box is fully watertight and designed for permanent outdoor marine use on deck or in exposed locations aboard yachts and day boats.
The TRIDENT® system activates automatically during a thermal runaway event. Multi-nozzle spray heads flood the interior with extinguishing agent, suppressing the fire while the system simultaneously cuts power to the charger and activates acoustic and visual alarms. Toxic gases are filtered through the integrated exhaust system. The TRIDENT® agent has a 10-year shelf life.
The RACLAN Square Marine Box is aligned with MGN 681 (M) Amendment 1 guidance. It provides dedicated storage and charging for batteries above the 100 Wh threshold specified in section 4.2, with temperature monitoring, automatic extinguishing, off-gas venting, and automatic charging shutdown as required by the guidance.
Monthly checks of the TRIDENT® agent level, quarterly electronics and sensor testing, and annual inspection of seals and exhaust filtration. The TRIDENT® extinguishing agent has a 10-year shelf life, minimising long-term maintenance requirements.
